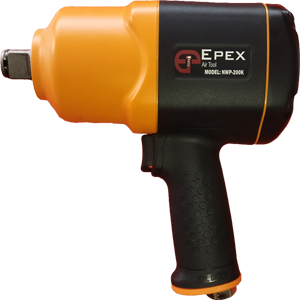

NWP-200K

3/4" Impact Wrench


    Features:

  • Composite Motor Housing
  • Twin Hammer Clutch Mechanism
  • Push Button One Hand Forward / Reverse
  • Available Optional Exhaust Hose Assembly
  • Handle Exhaust
  • 360° Swivel Air Inlet
  • Lightweight
  • Low Noise 90 dB(A)

Specifications:

Model No. Free Speed
(RPM)
Anvil
Size
Inch (mm)
Maximum Torque
Nm
Working Torque Range
Ft-lbs (Nm)
Air Inlet
(NPT)
Hose Size ID
Inch (mm)
Average Air Consumption
L/Min
Length
mm
Weight
Kg

NWP-200k 5,500 3/4 2,236 600-1,335 3/8" 3/8 299LPM 220 3.7
*Recommended Air Pressure at 90PSI (6.2 Bar)
*Max. Torque and Reverse Torque to be Tested by Removing Damping Material
